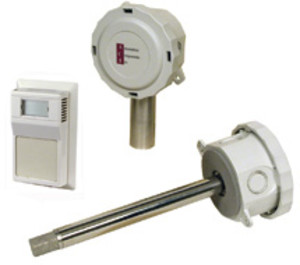

* product series image displayed

A/RH1-4-R2 | ACI | Humidity

1% ROOM HUMIDITY SENSOR 4-20MA OUTPUT

Brand:ACI

MPN:A/RH1-4-R2

SKU:A/RH1-4-R2

List Price:

$-.--

Today's Price:

$-.--

catalog page

product series specifications

Accuracy: ±1% @ 77°F (25°C) over a selectable 20% span from 50 to 70%, 60 to 80%, or 70 to 90% RH

Stability: ±2% RH/ 5 years

Supply Voltage: 12-40 VDC or 18-28 VAC

Signal Output: 4-20 mA @ 300Ω, 0-5/10 VDC @ 4kΩ min, (field selectable) except SP 0-5/10 VDC only

Measurement Range: 0% to 100%

Sensing Technology: Capacitive

Operating Temperature:

Room: 32° to 122°F (0° to 50°C)

Duct/OSA: -40° to 140°F (-40° to 60°C)

Enclosure:

Room: Plastic Delta-style

Duct/OSA: Plastic weatherproof

Dimensions:

Room: 3.8"H x 2.8"W x 0.9"D (9.8 x 7 x 2.3 cm)

Duct: 3.6" (9 cm) diameter head with 8.15"L (20 cm) probe 0.75" (1.9 cm) diameter

OSA: 3.6" (9 cm) diameter head with 3.0"L (7.6 cm) probe 1.4" (3.6 cm) diameter

Weight:

Room: 0.22 lb (0.1 Kg)

Duct: 1.2 lb (0.54 Kg)

OSA: 0.6 lb (0.27 Kg)

SP: 0.2 lb (0.09 Kg)

Approvals: CE, RoHS

Warranty: 5 years

product series features

Popular room housing
Five-year warranty
Duct and OSA twist-off NEMA 4 housing
24 VDC or 24 VAC power
Field selectable current or voltage outputs
Single point field calibration
Digital display option
Optional temperature sensor

more information & related documents

Series Description

The ACI A/RH1 Series relative humidity transmitters utilize a capacitive sensing element to deliver a highly accurate, proportional 4 to 20 mA, 0 to 5 VDC, or 0 to 10 VDC output for 1% measurement. It is available for room, duct, outside, and stainless steel wall plate applications. The A/RH1 Series is accurate over a customer specified 20% range (either 50 to 70%, 60 to 80%, or 70 to 90% RH). On board DIP switches allow the user to select the desired output signal and can be powered by AC or DC power sources. Each A/RH1 Series humidity transmitter is calibrated using a NIST Traceable Temperature/Humidity Chamber. Three and five point NIST calibration certificates are available and optional.

Kele Description

1% ROOM HUMIDITY SENSOR 4-20MA OUTPUT

Manufacturer

ACI
